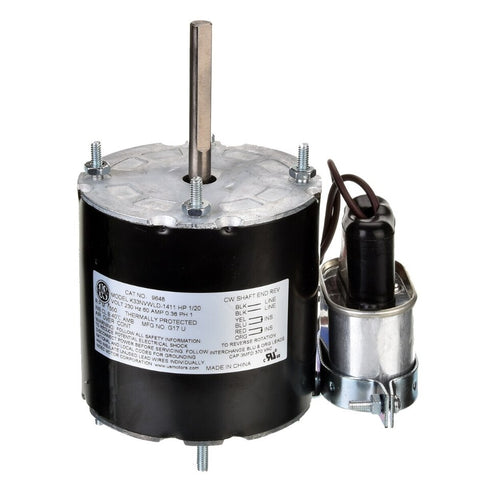

9648 RESCUE Refrigeration Motor 1/20HP 230V 1550 RPM
Refrigeration Motor
Cross Reference/Fit Models: Fedders, S196-47-2,3 Nortec, 142-3200
Technical Specifications
| Application | Refrigeration Evaporator fan |
| Bearing Type | Ball |
| FLA at 230V (A) | 0.36 |
| High Speed (RPM) | 1550 |
| HP | 1/20 |
| Input Voltage (V) | 230 |
| Motor Type | RESCUE High Efficiency PSC |
| Mounting | 4 studs on each end |
| Overall Shaft Length (in.) | 2-1/4 |
| Rotation Direction (OSE) | Reversible |
| Shaft Diameter (in.) | 5/16 |
Free Shipping
| Shipping Weight Actual (lbs.): | 3.35 |
| Shipping Weight Dimensional (lbs.): | 6.03 |
| Shipping Height (in.): | 10.13 |
| Shipping Length (in.): | 14 |
| Shipping Width (in.): | 10.63 |
| UPC Number: | 662766652437 |
Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.
It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.
Before ordering please verify this is the correct part for the unit it is being installed in. If installed improperly the warranty will be voided.
