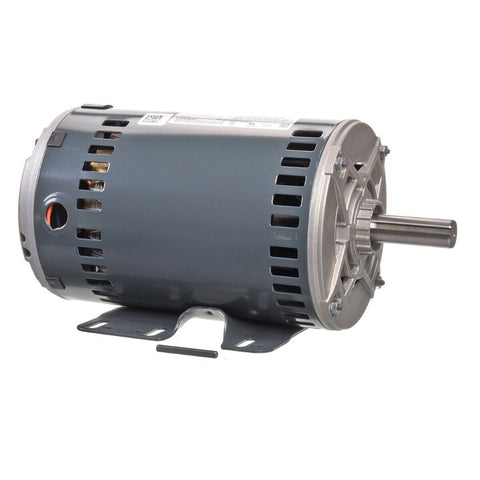

51-42536-02 OEM Rheem, Ruud, Sure Comfort, Weather King, Blower Motor 2HP 3PH 1SPD 575V 1725RPM


  • $455.99

Factory Authorized Replacement Part, Full Factory Warranty from Rheem, Ruud, Sure Comfort, Weather King


                      Free Shipping



Application Blower
Bearing Type Ball
Drive Type Belt Drive
FLA at 575V (A) 2.40
Frame Size 56Y
Frequency (Hz) 60
High Speed (RPM) 1725
HP 2
Input Voltage (V) 575
Keyed/Flat Shaft Length (in.) 3/16 x 3/16 x 1-7/8
LRA at 575V (A) 19.00
Motor Body Diameter (in.) 6-7/16
Motor Body Length (in.) 11-5/16
Mounting Platform
No. of Phases 3
No. of Speeds 1
Overall Motor Length (in.) 13-9/16
Overall Shaft Length (in.) 2-3/8
Rotation Direction (OSE) Reversible
Shaft Diameter (in.) 7/8


Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.


It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.


Before ordering please verify this is the correct motor for the unit it is being installed in. If installed improperly the warranty will be voided.
