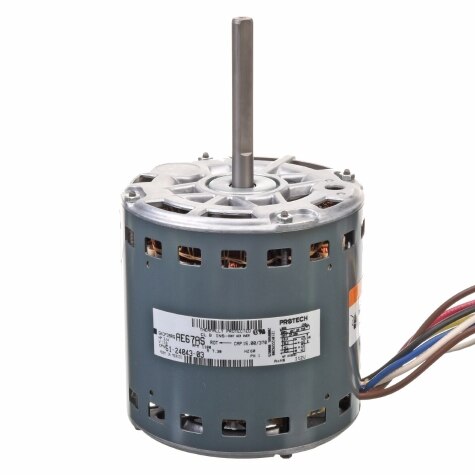

51-24043-03 Rheem OEM Blower Motor 3/4HP 1PH 4SPD 120V 1075RPM
Factory Authorized Replacement Part, Full Factory Warranty from Rheem, Ruud, Sure Comfort, Weather King
|Drive Type||Direct Drive|
|FLA at 120V (A)||7.30|
|High Speed (RPM)||1075|
|Input Voltage (V)||120|
|Keyed/Flat Shaft Length (in.)||3|
|LRA at 120V (A)||14.70|
|Motor Body Diameter (in.)||5-39/64|
|Motor Body Length (in.)||5-11/16|
|Mounting||Shell-band | Shell-screw|
|No. of Phases||1|
|No. of Speeds||4|
|Overall Motor Length (in.)||9-1/2|
|Overall Shaft Length (in.)||3-3/4|
|Rotation Direction (OSE)||CCW|
|Run Capacitor (uF/V)||15/370|
|Shaft Diameter (in.)||1/2|
Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.
It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.
Before ordering please verify this is the correct motor for the unit it is being installed in. If installed improperly the warranty will be voided.
