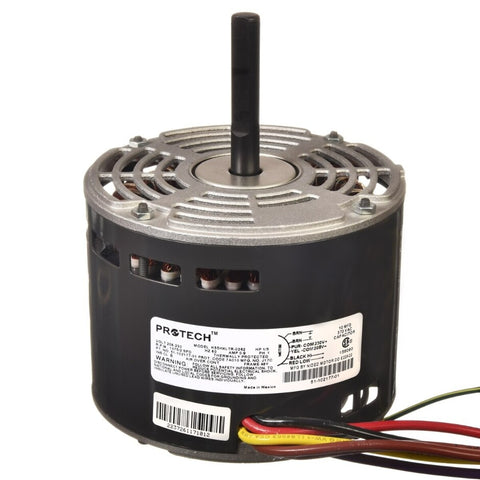

51-102177-01 OEM Rheem, Ruud, Sure Comfort, Weather King, Blower Motor 1/5HP 1PH 2SPD 220/230V 1075RPM

Rheem

  • $165.99


Factory Authorized Replacement Part, Full Factory Warranty from Rheem, Ruud, Sure Comfort, Weather King



                      Free Shipping



Shipping Weight Actual (lbs.):        10.96
Shipping Weight Dimensional (lbs.):        10.96
Shipping Height (in.):        7.35
Shipping Length (in.):        13.30
Shipping Width (in.):        8.35
UPC Number:        662766336252

Specifications:

Application Blower
Bearing Type Sleeve
Drive Type Direct Drive
FLA at 208V (A) 0.90
FLA at 230V (A) 0.90
Frame Size 48
Frequency (Hz) 60
High Speed (RPM) 1075
HP 1/5
Input Voltage (V) 208 | 230
Keyed/Flat Shaft Length (in.) 2
LRA at 208V (A) 1.60
LRA at 230V (A) 1.60
Motor Body Diameter (in.) 5-5/8
Motor Body Length (in.) 4-5/16
Mounting Shell-band
No. of Phases 1
No. of Speeds 2
Overall Motor Length (in.) 7-1/16
Overall Shaft Length (in.) 2-3/4
Rotation Direction (OSE) CCW
Run Capacitor (uF/V) 10/370
Shaft Diameter (in.)


Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.



It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.



Before ordering please verify this is the correct motor for the unit it is being installed in. If installed improperly the warranty will be voided.
