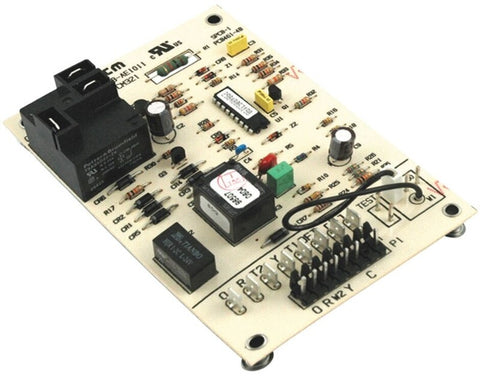

47-ICM321 Defrost Control Board 18-30VAC 30,50,90 Minute Defrost Interval

47-ICM321 Defrost Control Board 18-30VAC 30,50,90 Minute Defrost Interval


  • $134.99

Defrost Control Board


    Cross Reference/Fit Models:  Carrier CESO10063-00, CESO110063-01, CESO110063-02, CESO110063-02A, CESO130024-01, 150-83-6A

    Technical Specifications

    Anti-Short Cycle Time (minutes) 5
    Contact Rating - NC (A) 10
    Contact Rating - NO (A) 20
    Defrost Interval (minutes) 30,50,90
    Defrost Time (minutes) 10
    Frequency (Hz) 50,60
    Output Form Relay - SPDT-NO/NC
    Type Defrost Control
    Voltage (VAC) 18-30

                                   Free Shipping


    Shipping Weight Actual (lbs.):        0.45
    Shipping Weight Dimensional (lbs.):        0.64
    Shipping Height (in.):        3.30
    Shipping Length (in.):        8.70
    Shipping Width (in.):        5.60
    UPC Number:        662766392067


    Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.


    It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.


    Before ordering please verify this is the correct part for the unit it is being installed in. If installed improperly the warranty will be voided.
