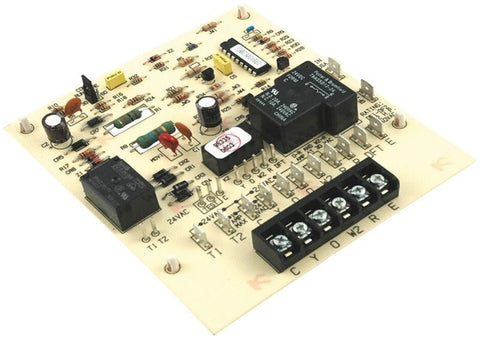

47-ICM319 Defrost Control Board 18-30 VAC 30,60,80 Minute Defrost Interval
Defrost Control Board
Cross Reference/Fit Models: ICM DFORB24A2I300, Nordyne 624519A
Technical Specifications
| Contact Rating - Motor (HP) | 1/2 |
| Contact Rating - Motor (V) | 230 |
| Contact Rating - Strip Heat/Reversing Valve (A) | 1 |
| Contact Rating - Strip Heat/Reversing Valve (V) | 24 |
| Defrost Interval (minutes) | 30,60,80 |
| Defrost Time (minutes) | 10 |
| Frequency (Hz) | 50,60 |
| Type | Defrost Control |
| Voltage (VAC) | 18-30 |
Free Shipping
| Shipping Weight Actual (lbs.): | 0.50 |
| Shipping Weight Dimensional (lbs.): | 0.64 |
| Shipping Height (in.): | 3.30 |
| Shipping Length (in.): | 8.70 |
| Shipping Width (in.): | 5.60 |
| UPC Number: | 662766392043 |
Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.
It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.
Before ordering please verify this is the correct part for the unit it is being installed in. If installed improperly the warranty will be voided.
