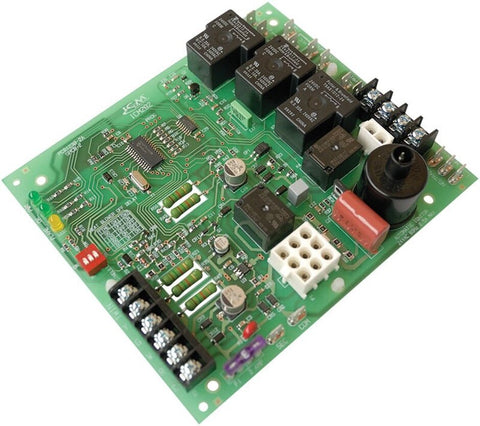

47-ICM292 Furnace Control Board  18-30 VAC

47-ICM292 Furnace Control Board 18-30 VAC


  • $174.99

Furnace Control Board


    • Direct Spark Ignition (DSI) control board

    • Microprocessor-based

    • Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor and the gas valve

    • Monitors timing, trial for ignition, system switches, flame sensing and lockout

    • 100% lockout safety feature

    • Compatible with LP or Natural Gas

    • LED indication for status and fault codes to aid in troubleshooting

    Technical Specifications

    Contact Rating - Inducer (A) 4
    Contact Rating - Inducer (V) 120
    Frequency (Hz) 60
    Type Furnace Control
    Voltage (VAC) 18-30

    Free Shipping


    Shipping Weight Actual (lbs.):        0.80
    Shipping Weight Dimensional (lbs.):        0.80
    Shipping Height (in.):        2.80
    Shipping Length (in.):        8.20
    Shipping Width (in.):        7.30
    UPC Number:        662766506600


    Notice: Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life.


    It is your responsibility to seek professional advice when installing and using these parts and accessories. If installed improperly warranty will be voided.


    Before ordering please verify this is the correct part for the unit it is being installed in. If installed improperly the warranty will be voided.
